Overhead Communicating FCI

Patrolman Plus

The Patrolman Plus uses cellular networks to transmit fault location and data back to the utility. These clamp-and-play units include built-in LTE connectivity and GPS location.

Request information Download catalog

Field use instructions →

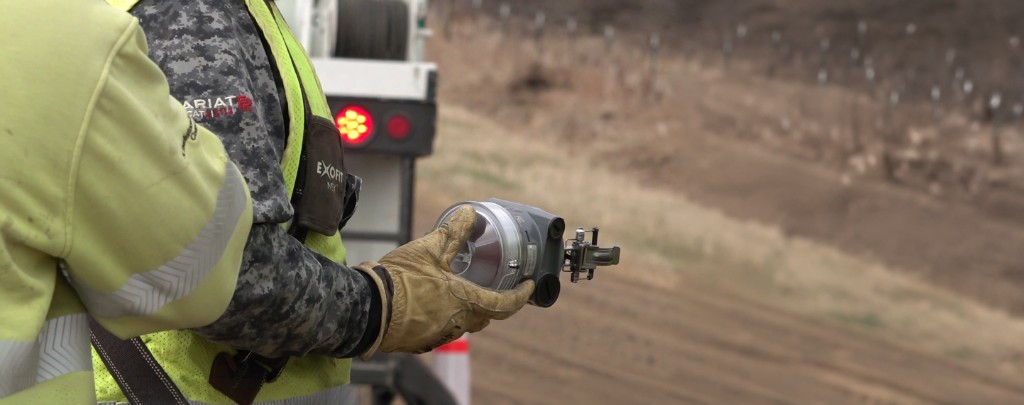

Lineworker holding a Patrolman Plus fault indicator in the field

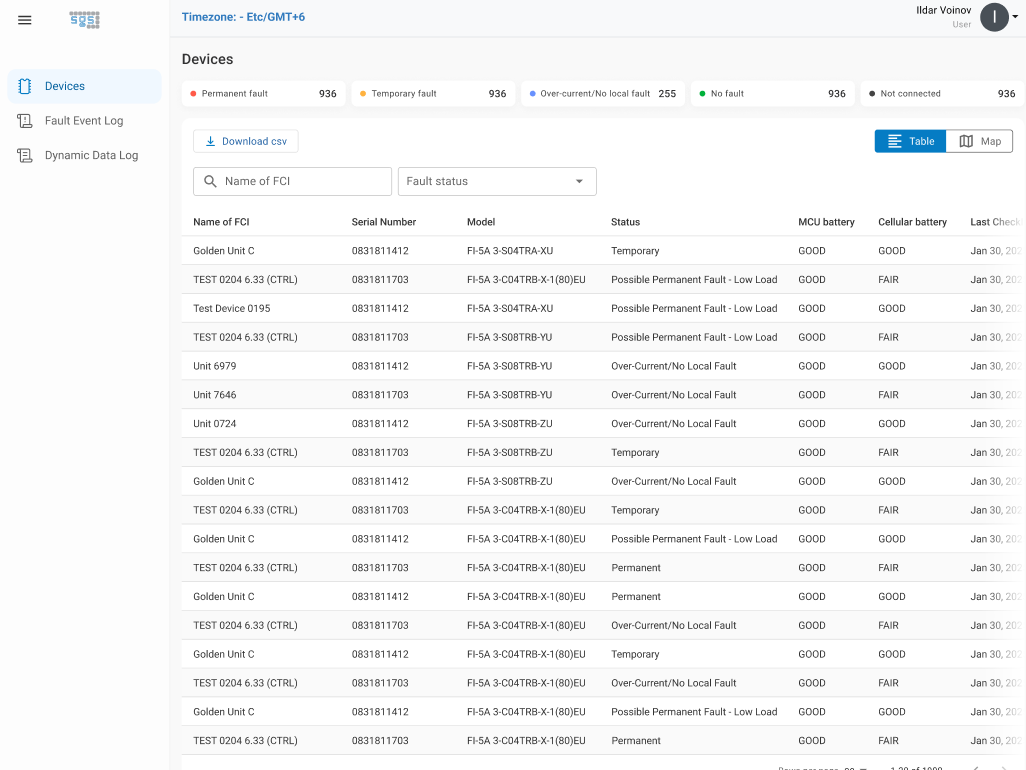

Connected devices listed in the SGS wireless portal

Overview

The Patrolman Plus is designed for easy and efficient operation in power distribution networks, utilizing cellular networks to instantly transmit fault location and data back to the utility. These units are clamp-and-play, featuring built-in LTE connectivity and location through GPS, allowing for immediate use upon installation without additional equipment.

Users can monitor status and faults through an online portal and customize who receives text or email alerts. SGS also offers options to connect to existing OMS, GIS, or SCADA systems using industry-standard protocols. Line harvesting and replaceable batteries extend field life with minimal maintenance.

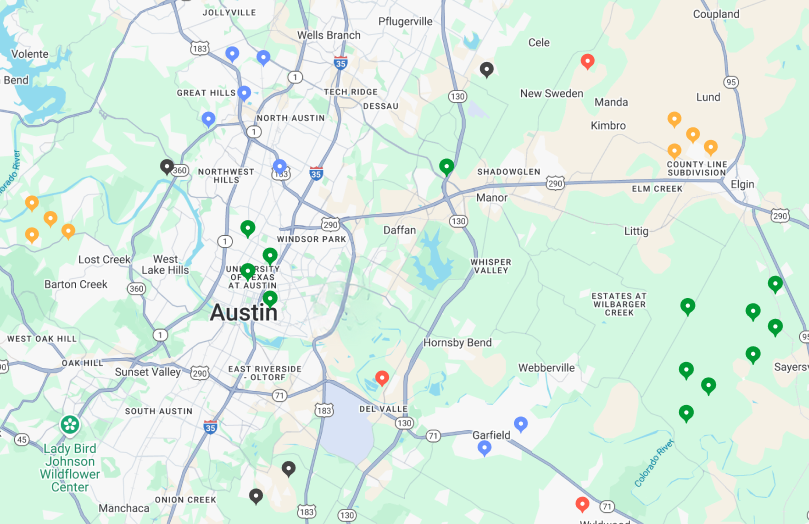

Device locations in the SGS wireless portal

Specifications

Additional configurations and indication settings are available. Contact SGS for other options.

Means of wireless connectivity: Cat-M1 cellular through major providers and private LTE
Trip current range: Auto-adjusting trip level with real time load tracking
Voltage range: Suitable for all voltages up to 35 kV
Power source: 10.9 Ah lithium cells, replaceable
Harvests power from the line when load is >20 A
Manufacturer’s warranty: 5 years from date of purchase
Installation diameter: 0.3 in to 1.7 in (8 mm to 42 mm), bare or covered conductors
Indication: Cellular through major providers and private LTE
High-intensity LEDs
LED flashing options: Option 1: fault — red flashing; low battery — yellow flashing
Option 2: permanent fault — red flashing; temporary fault — yellow and red flashing; low battery — yellow flashing
Accuracy: +/- 5%
Auto reset time: Customer specified (standard settings of 4 hr, 8 hr, or 24 hr)
Separate reset times available for permanent and temporary faults
Casing materials: UV stable polycarbonate and potting compound
Current transformer: Split-core corrosion resistant stainless steel
Temperature range: -50°C to +85°C
Weight: 22 oz (620 g)

Accessories and kits

Communicating Overhead Troubleshooting Kit

The Patrolman Plus Troubleshooting Kit is designed to help utilities quickly identify and locate faults on overhead distribution lines. Built for rapid deployment, the kit is ideal for investigating active outages or monitoring problematic areas. These units are clamp-and-play, featuring built-in LTE connectivity and location through GPS, allowing for immediate use upon installation without additional equipment.

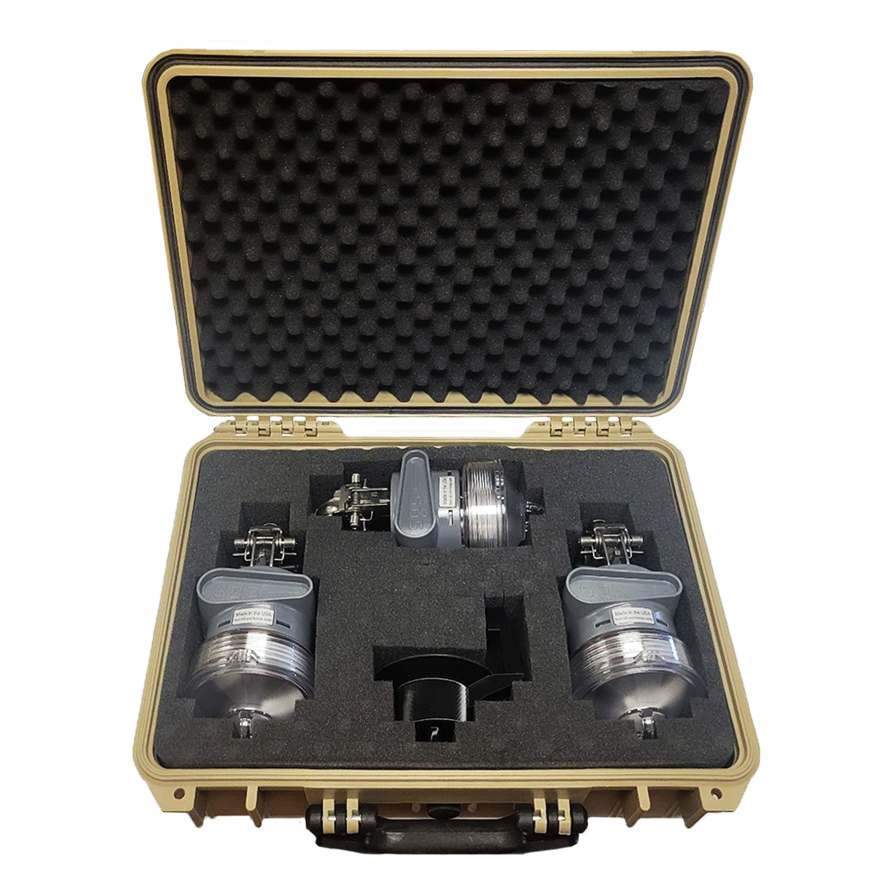

Patrolman Plus troubleshooting kit with three communicating fault indicators in a hard case
